Hook Lift Dump Bed

Product details

Place of Origin: Yangzhou, China
Brand Name: OEM is available
Material: Mild steel
Color: According to your requirements
Size: Customized size
Certification: ISO9001

----------------------------------------------------------------------
Payment & Shipping Terms

Minimum Order Quantity: 10 units
Price: negotiable
Packaging Details: Nude packing
Delivery Time: 35 days after receiving the deposit
Payment Terms: L/C, T/T or negotiable

Quantity:
Availability:





Inquire Add to Basket

Hook Lift Flatbed hook lift dump bed hook lift dump body hook lift bin bed hooklift flatbed hooklift dump bed hooklift flat deck hook lift tray hooklift flatbed body hooklift beds

Product Description

Plate Thickness

specifications

Features

FAQ

Product Description

Hook lift flatbed, used on a truck bed designed to facilitate loading and unloading of materials, commonly used in construction, waste management and landscaping.Hero Equipment can customize a variety of hook lifting flatbeds for you.

Heavy-duty hook lift dump bed featuring flawlessly primed and painted mild steel construction

Plate Thickness

10gauge 8gauge (3mm-4mm) M/S plate for sides and 8 gauge 6gauge(4mm-5mm) M/S for floor.

Thicker plates are available to ur requirements

Specifications

Size and color can be customized.

Hook bar: Dia 50mm

Bottom chassis: PFC or 'I' beam, usually 200*75 PFC Curved sides are available Hinge and rollers with grease points

Specification	Details
Product Name	Hook Lift Dump Bed / Flatbed
Side Plate Thickness	10 gauge to 8 gauge (3mm-4mm) Mild Steel (Thicker plates available upon request)
Floor Plate Thickness	8 gauge to 6 gauge (4mm-5mm) Mild Steel (Thicker plates available upon request)
Size & Capacity	10', 12', 14', 16' lengths or 100% Customized
Color	Customized
Hook Bar Diameter	50mm (Customizable to fit specific hooklift systems)
Bottom Chassis	PFC or 'I' beam (Usually 200*75 PFC)
Side Design	Curved sides available
Tailgate Style	Top-hinged, single swing, or customized
Hinges and Rollers	Heavy-duty, equipped with grease points / grease zerks
Material	Mild Steel (M/S) / High-strength robust materials
Welding	Fully welded interior and exterior
Surface Finish	Primed and painted complete
Production Process	Cutting, splicing, grinding, welding

Hook Lift System: Attach and detach the dumper from the truck bed using a hook lift mechanism. Allows for quick change between different types of flatbeds or containers.

Versatility: Can be used to transport a variety of materials including dirt, debris, gravel and construction waste.

Dumping Capability: Designed to be tilted or dumped its contents for easy unloading of material.

Durability: Constructed from robust materials to withstand heavy loads and harsh working conditions.

Efficiency: Streamlines operations by reducing the time needed to switch between tasks or materials, enhances productivity on job sites.

FAQ

Q：What kind of production process do you use when manufacturing steel waste bins?

A：The main processes are cutting, splicing, grinding, welding, etc. Welcome to visit our factory.

Q:How can I get a quote?

A：Contact us by email： sales@herogroup.com.cn

Q: Do you provide shipping services?

A:We have been doing this for more than 20 years and have professional freight forwarders with rich experience. If you have other items you need to purchase, you can also consult us.

Related Products

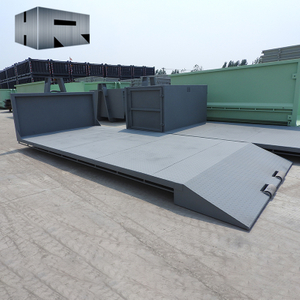

Hook Lift Flat Deck with Ramp
