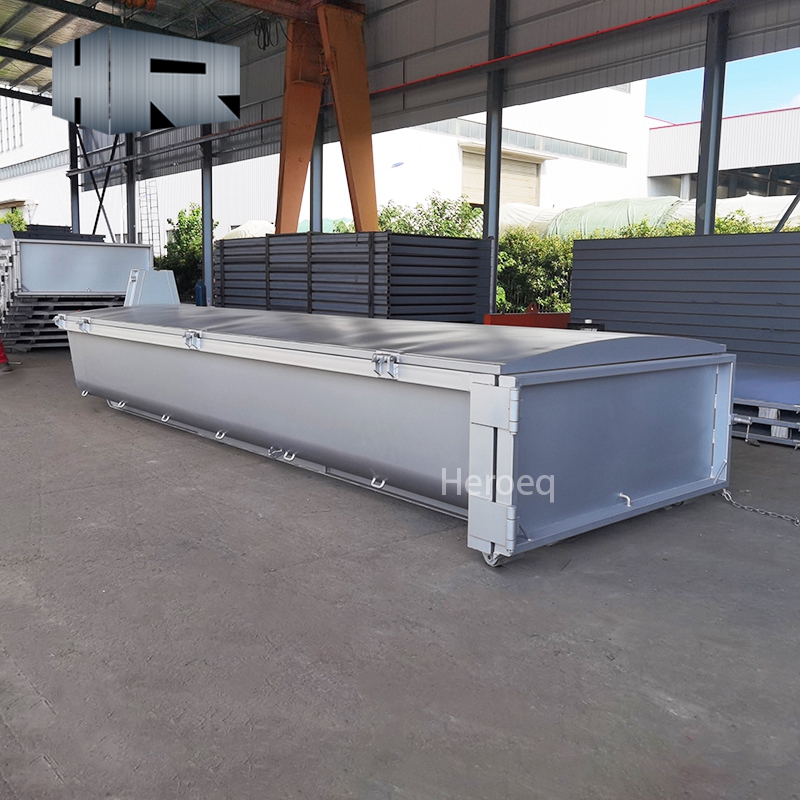

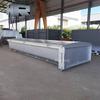

Heavy-Duty Hook Lift Bin with Hydraulic Lid

Hydraulic cover system

A reinforced hydraulic cover is installed on top of the hook lift bin to provide controlled opening and closing during waste loading, storage, and transportation.

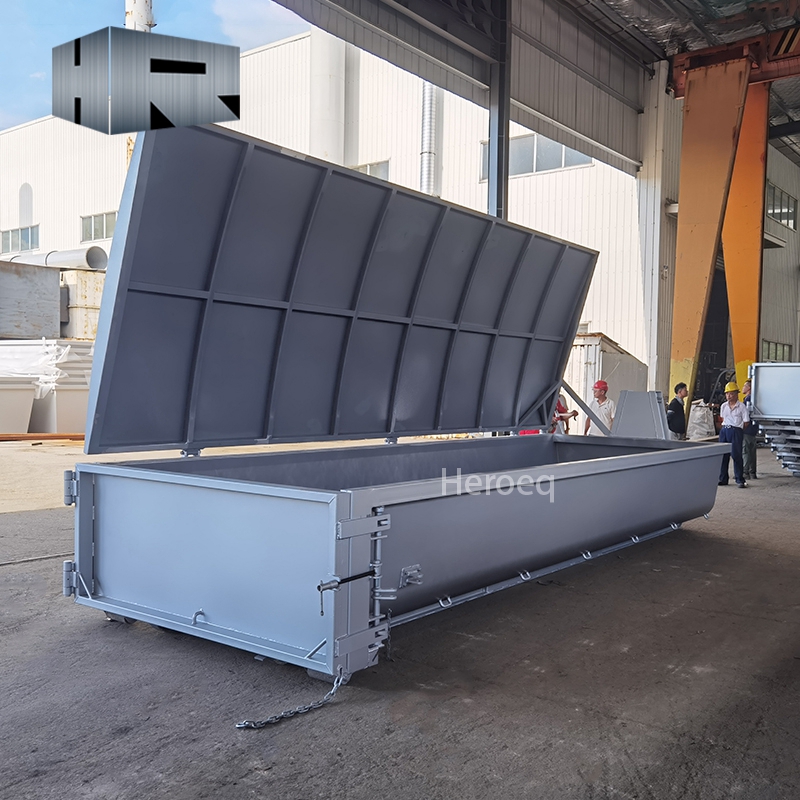

The lid is manufactured from reinforced carbon steel and can be designed with reinforcing ribs to improve rigidity and reduce deformation. Its dimensions and shape are matched to the opening of the customized bin body.

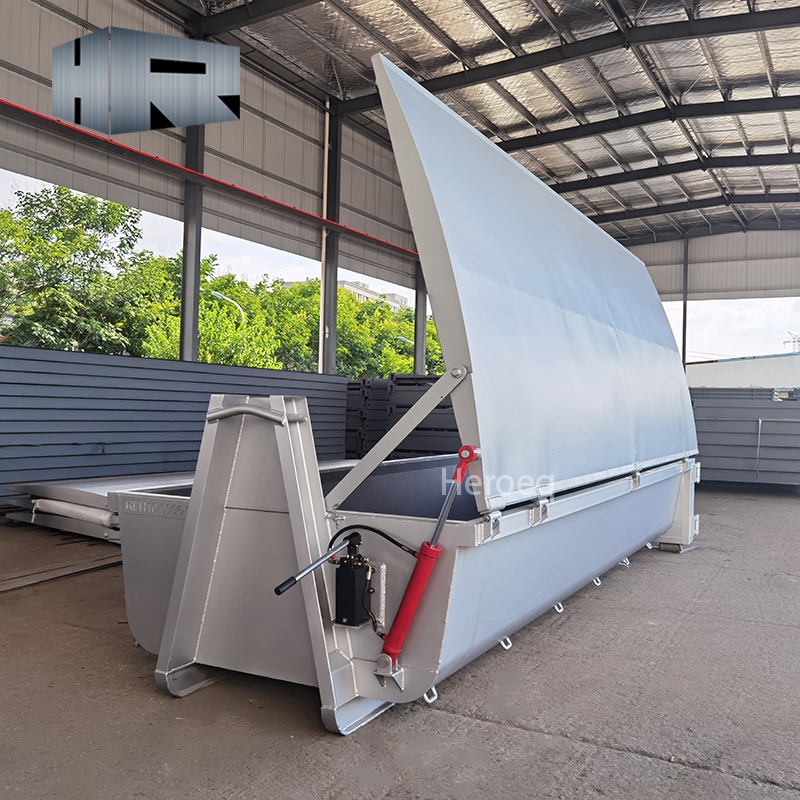

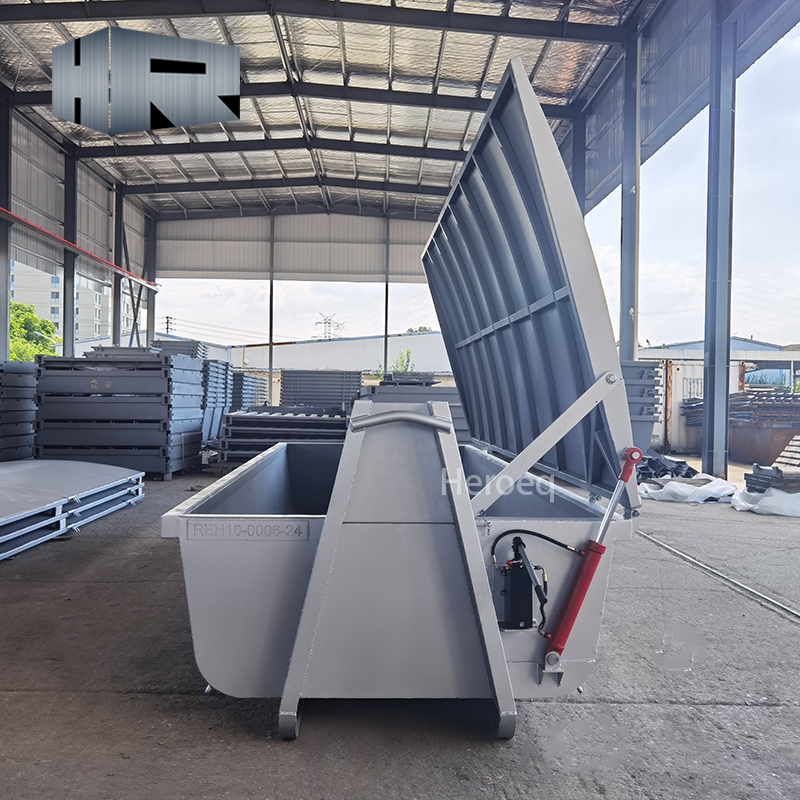

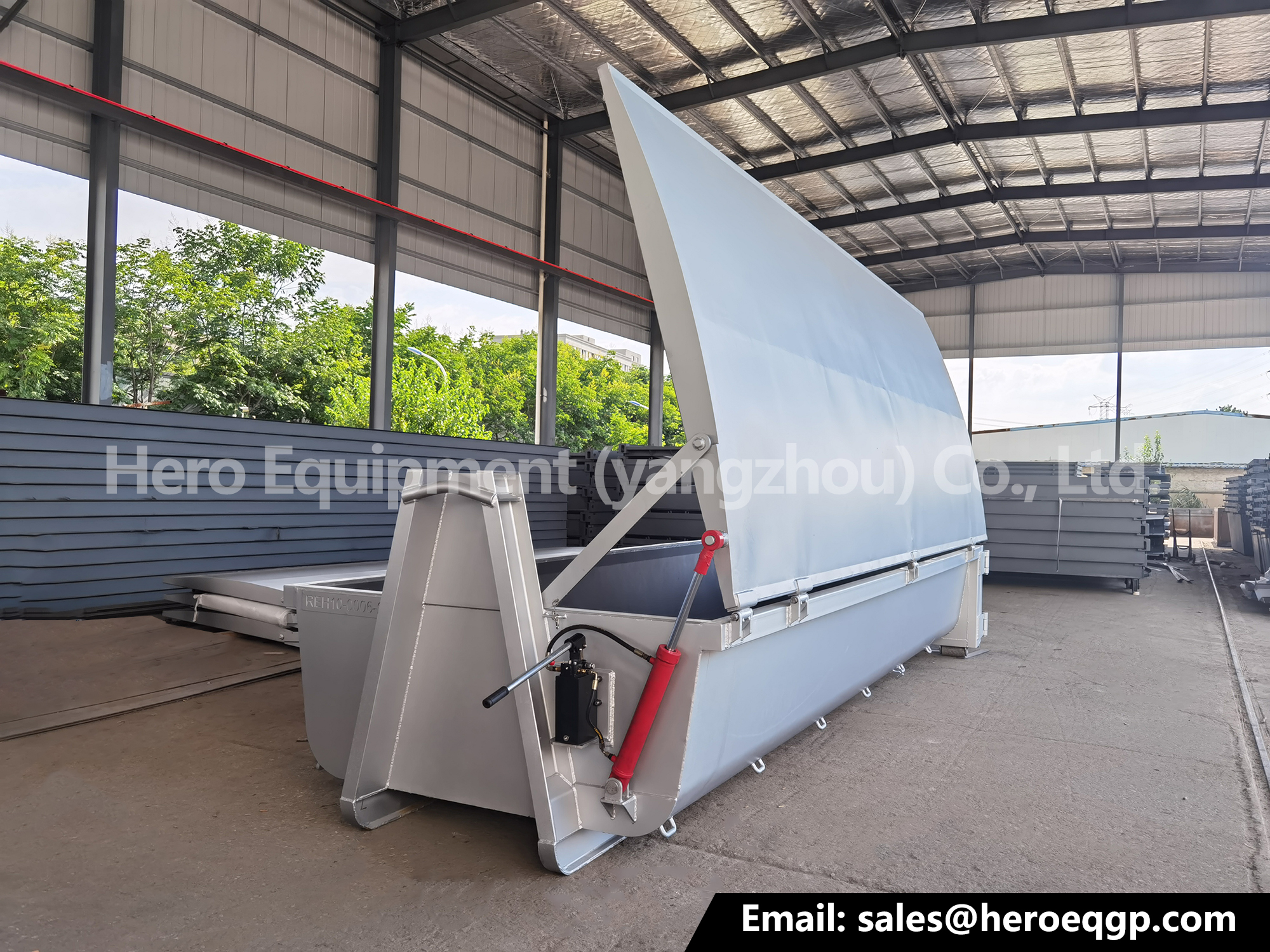

Depending on the size and structural requirements of the container, one or more hydraulic cylinders can be configured to push or pull the cover during operation. The cylinder quantity, mounting position, opening direction, and hydraulic circuit arrangement can be selected according to the bin design and operating requirements.

The hydraulic lid can be operated through a compatible hydraulic control system. Control configurations can be customized according to project requirements.

Available configurations may include integration with the truck's hydraulic system or another compatible hydraulic power source. The required hydraulic connection, operating method, and control arrangement should be confirmed before production.

When closed, the steel lid helps:

• 1、Limit the scattering of lightweight waste during transportation

• 2、Reduce direct exposure of the stored material

• 3、Reduce rainwater entry into the container

• 4、Limit odor release from suitable waste materials

• 5、Restrict access by animals and unauthorized personnel

• 6、Support cleaner waste storage and transportation

Product Features

1. Reinforced Steel Construction

The bin body is manufactured from mild carbon steel, while the hydraulic lid is made from reinforced carbon steel. Structural reinforcement can be added to the floor, side walls, top rails, hook assembly, and lid according to the expected waste type and payload.

2. Hydraulically Operated Lid

The hydraulic system provides controlled opening and closing of the steel cover. The number of cylinders, opening direction, hydraulic connection, and control configuration can be customized according to the bin size and operating conditions.

3. Covered Waste Storage

The fitted steel lid helps reduce waste exposure, lightweight material scattering, rainwater entry, odor release, and access by animals during storage and transportation.

4. Hook Lift Truck Integration

The bin is designed for loading, unloading, and transportation with a compatible hook lift truck. Hook height, rail spacing, roller position, and overall container dimensions can be produced according to the customer’s truck or hook lift system.

5. Capacity from 4 to 40 m³

Multiple capacity options are available to accommodate different waste volumes and project requirements. The final external dimensions depend on the required capacity, truck compatibility, material type, and loading conditions.

6. Reinforced Base Structure

The base frame can be reinforced to improve stability during loading, unloading, storage, and transportation. Structural details should be selected according to the intended payload and operating environment.

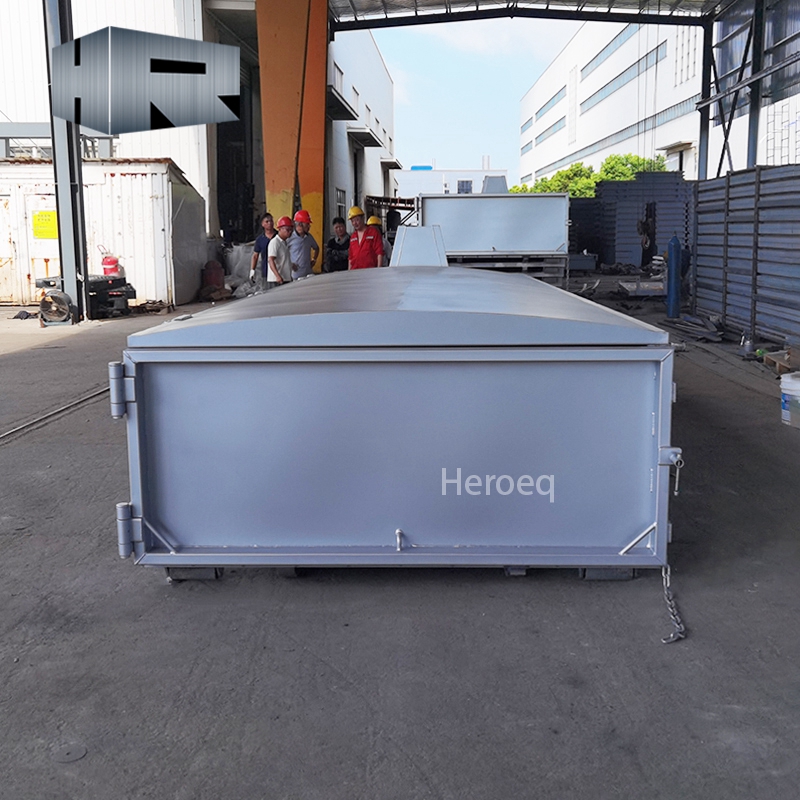

7. Customizable Rear Door

Different rear-door structures and locking arrangements can be configured to support loading and unloading requirements. Available designs depend on the type of waste and the customer’s operating process.

8. Custom Surface Treatment

Surface preparation, primer, topcoat, color, markings, and customer logos can be customized. The appropriate surface treatment should be selected according to whether the bin will be used indoors, outdoors, or in a corrosive environment.

9. Optional Functional Configurations

Depending on project requirements, the bin can be supplied with optional wheels, rollers, drainage outlets, ladders, additional locking devices, customized doors, identification plates, reflective markings, and other accessories.

10. OEM and ODM Support

Capacity, dimensions, steel thickness, hook structure, hydraulic lid, rear door, surface treatment, paint color, logo, and accessory configurations can be customized using customer drawings, truck specifications, samples, or project requirements.

Product Applications

1、Municipal Waste Collection

Suitable for collecting and transporting municipal solid waste where a covered hook lift container is required to reduce waste exposure and material scattering.

2、Industrial Waste Handling

Can be configured for factories, warehouses, industrial parks, and manufacturing facilities that need centralized collection and transportation of compatible industrial waste.

3、Construction and Demolition Sites

The reinforced steel structure is suitable for construction-site waste collection. Steel thickness, reinforcement, rear-door structure, and rated payload should be selected according to the material being loaded.

4、Commercial Waste Collection

Suitable for shopping centers, markets, logistics facilities, large commercial properties, and other locations that generate high volumes of general waste.

5、Recycling Operations

Can be used to collect and transport recyclable materials such as packaging waste, plastics, paper, metal products, and other compatible materials. The hydraulic lid helps contain lightweight materials during transportation.

6、Organic Waste Collection

The covered structure can be configured for suitable organic waste collection applications. Drainage, sealing, surface treatment, and cleaning requirements should be confirmed according to the material and local operating regulations.

FAQ

Q1: What capacity options are available for this hook lift bin?

The available capacity range is 4–40 m³. The final capacity and dimensions can be customized according to the required waste volume, available installation space, truck specifications, payload, and transportation requirements.

Q2: How is the hydraulic lid operated?

The hydraulic lid can be operated through a compatible hydraulic control system. Control configurations can be customized according to project requirements. Please provide information about the available hydraulic power source and preferred operating method when requesting a quotation.

Q3: Can this bin fit my existing hook lift truck?

The bin can be customized according to the truck or hook lift system. Please provide the hook height, hook diameter, rail spacing, roller position, maximum external dimensions, rated lifting capacity, and relevant truck drawings before production.

Q4: What materials are used for the bin and hydraulic lid?

The bin body is manufactured from mild carbon steel, and the hydraulic lid is manufactured from reinforced carbon steel. Steel thickness and structural reinforcement can be adjusted according to the intended waste type, required payload, and operating environment.

Q5: Can the size and steel thickness be customized?

Yes. Capacity, overall dimensions, floor thickness, side-wall thickness, top-rail structure, hook assembly, and base reinforcement can be customized. The recommended configuration depends on the material being loaded and the required payload.

Q6: Are wheels and locking devices included as standard?

Wheels, rollers, drainage outlets, lid-locking mechanisms, and other accessories can be provided according to project requirements. Customers should confirm the required standard and optional configurations before placing an order.

Q7: Can the paint color and company logo be customized?

Yes. Paint color, surface treatment, warning markings, identification plates, and customer logos can be customized. Please provide the required color code, logo file, and marking details when confirming the order.

Q8: What information is required for a customized quotation?

Please provide the required capacity, overall dimensions, waste type, estimated payload, truck or hook lift system specifications, hook height, rail spacing, rear-door requirements, hydraulic power source, lid control method, surface treatment, color, quantity, and destination port.

Q9: Is the bin suitable for outdoor use?

The bin can be configured for outdoor waste collection and transportation. The appropriate steel thickness, surface preparation, coating system, drainage design, and maintenance plan should be selected according to the climate and operating environment.

Q10: What payment terms are available?

The standard payment arrangement is generally a 30% deposit, with the balance paid according to the agreed contract and shipping documents. L/C, T/T, and other payment arrangements can be discussed based on the order.
